CONVEYOR OVENS

STANDARD FEATURES

	U.L. recognized/listed components
	All circle Industrial ovens meet the required standards of Factory Mutual & National Fire Protection Association
	Standard oven: 450 deg F. 440 V. 3 PH.
	Every oven is factory tested

CONSTRUCTION

	Adjustable louvers for balanced air flow
	Adjustable exhaust & fresh air inlet
	Exclusive CIM rec. blower assembly
	I.R.I. gas valve train
	Insulation 6" throughout oven
	Heavy duty construction
	All inside panels & ductwork are minimum 20 ga. galvanneal

CONTROLS

	Digital temperature controls
	Panel with main disconnect
	Panel prewired for 440 volts, 3 PH
	Conveyor on/off push button switch

SAFETY EQUIPMENT

	Over temperature protection
	Electronic flame safeguard protection
	Air flow safety on all blowers
	High & low gas pressure switches
	Purge timer
	Motorized exhaust
	Note: For applications in hazardous locations, additional safety devices may be required

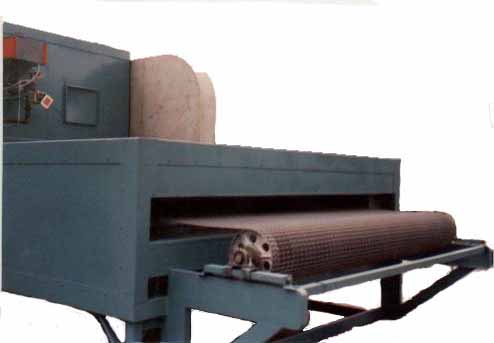

Conveyor Oven

OPTIONAL FEATURES

	Bottom located heater
	Strip or circular chart recorder
	S.C.R. controls (electric oven only)
	Modulating controls (gas ovens only)
	Vacuum ports
	Vari-speed conveyor
	Special sizes
	Custom interiors
	Interior lights
	Externally adj. supply & return ports
	Exhaust stack kit 10' standard
	Overhead roller conveyor
	Clean out doors
	U.L. approved control panel & flame safety

Operating Temp: 450 Degrees F.

Model	A	B	C	D	E	F	G	H	BURNER BTU	REC CFM	EXH CFM	REC HP	EXH HP	COMP HP
CIM C-100H	1	1	6	3	2	7	6	10	108741	36	3.6	0.1	0.7A	0.1
CIM C-104H	1	2	6	3	3	7	6	10	18106	72	7.2	0.1	0.7A	0.1
CIM C-108H	1	2	10	3	3	11	6	14	29366	120	12	.25	0.7A	0.1
CIM C-112H	1	3	10	3	4	11	6	14	41014	180	18	.25	0.7A	0.1
CIM C-116H	1	3	15	3	4	16	6-6	19	60610	270	27	.25	0.7A	0.1
CIM C-120H	2	3	25	4	4	26	7-6	29	154063	900	90	0.5	1A	0.2
CIM C-124H	2	4	30	4	5	31	7-6	34	233386	1440	144	0.5	1.5A	0.2
CIM C-128H	2	4	40	4	5	41	7-6	44	309562	1920	192	.75	1.5A	.25
CIM C-132H	1	5	25	3	6	26	6-6	29	156216	750	75	0.5	1A	0.2
CIM C-134H	2	5	35	4	6	36	7-6	39	328716	2100	210	.75	1.5A	.25
CIM C-136H	1	6	10	3	7	11	6-6	14	75955	360	36	.25	0.7A	0.1
CIM C-138H	1	6	45	3	7	46	6-6	49	329047	1620	162	.75	1.5A	.25
CIM C-140H	2	6	10	4	7	11	7.6	14	115478	720	72	0.5	1A	0.1

Note: G dimensions are in feet and inches.

Other sizes available on request. Dimensions may vary.
FRONT	SIDE

Due to our continuing R&D, CIM reserves the right to make changes to our ovens without prior notice
