TRUCK OVENS

STANDARD FEATURES

	U.L. recognized/listed components
	All circle Industrial ovens meet the required standards of Factory Mutual & National Fire Protection Association
	Standard oven: 450 deg F. 440 V. 3 PH.
	Every oven is factory tested

CONSTRUCTION

	Adjustable louvers for balanced air flow
	Adjustable exhaust & fresh air inlet
	Exclusive CIM rec. blower assembly
	I.R.I. gas valve train
	Heavy duty doors & frames with explosion latches
	Insulation 6" throughout oven
	Heavy duty construction
	Heavy duty truck & track
	All inside panels & ductwork are minimum 20 ga. galvanneal

CONTROLS

	Digital temperature controls
	Panel with main disconnect
	Panel prewired for 440 volts, 3 PH

SAFETY EQUIPMENT

	Over temperature protection
	Electronic flame safeguard protection
	Air flow safety on all blowers
	High & low gas pressure switches
	Purge timer
	Note: For applications in hazardous locations, additional safety devices may be required

Truck Oven

OPTIONAL FEATURES

	Strip or circular chart recorder
	S.C.R. controls (electric oven only)
	Modulating controls (gas ovens only)
	Vacuum ports
	Special truck to suit your products
	Motorized truck (air or electric)
	Custom interiors
	Insulated floor
	Interior lights
	Overhead door
	Exhaust stack kit 10' standard
	Automatic door (overhead only)
	U.L. approved control panel & flame safety

Operating Temp: 450 Degrees F.

Model	A	B	C	D	E	F	G	BURNER TYPE	BTU	KW	TOTAL AMPS	REC CFM	REC HP	EXH CFM	EXH HP
CIM-100T	3	4	5	3-6	5-6	7-2	17	E	58348	12	16	360	.25	36	0.7A
CIM-102T	5	54	5	5-6	6-8	7-2	19	E	107640	23	30	750	0.5	75	1.1A
CIM-104T	4	5	6	4-6	6-6	8-2	21	E	104549	22	29	720	0.5	72	1.1A
CIM-106T	5	5	6	5-6	6-8	8-2	21	E	126132	27	35	900	0.5	90	1.5A
CIM-108T	6	5	6	6-6	6-8	8-2	21	E	147715	31	41	1080	0.5	108	1.5A
CIM-110T	8	6	8	8-6	7-10	10-4	24	G/E	287923	61	80	2304	1	230	1.5A
CIM-112T	8	7	10	8-6	8-10	12-4	25	G/E	403291	86	112	3360	1.5	336	0.25
CIM-114T	8	8	10	8-6	8-10	10-4	26	G/E	453965	96	126	3840	2	384	0.25

Note: Electric shown. Gas or electric available. D, E, & F dimensions are in feet and inches.

Other sizes available on request. Dimensions may vary.

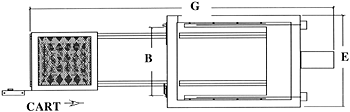

TOP

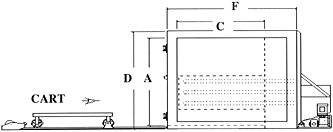

SIDE

Due to our continuing R&D, CIM reserves the right to make changes to our ovens without prior notice
